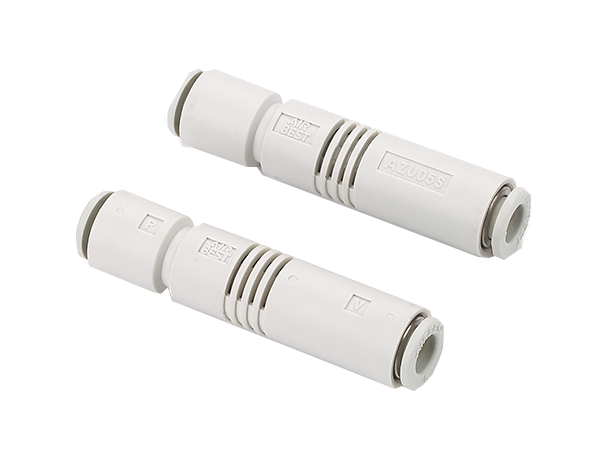

Features
◇ Tube structure design,no need to install.
◇ Equipped with one-touch fitting,easy connection.
◇ Resin made housing,small volume and light weight.
◇ Available in high vacuum level type and large vacuum flow type.
Applications
◇ Suitable for occasions where vacuum is required for each station in fast operation.
◇ Handling of electronic components.
◇ Various specifications to meet different operation requirements.
◇ Used in separation system for plastic and metal plate processing.
| How to order | ||||||
| AZU 05 S ① ② ③ | ||||||
| ① Series | ② Nozzle diameter | ③ Performance specification | Hose connection | |||
| AZU | 05 - φ0.5mm 07 -φ0.7mm | S - High vacuum level type (-85kPa) L - Large vacuum flow type (-48kPa) | Standard, hose φ6mm. | |||
| Selection | ||||||
| Model | S - High vacuum level type | L - Large vacuum flow type | ||||
| AZU05 | ● | ● | ||||
| AZU07 | ● | ● | ||||
◇Note: "●"- standard, in stock.

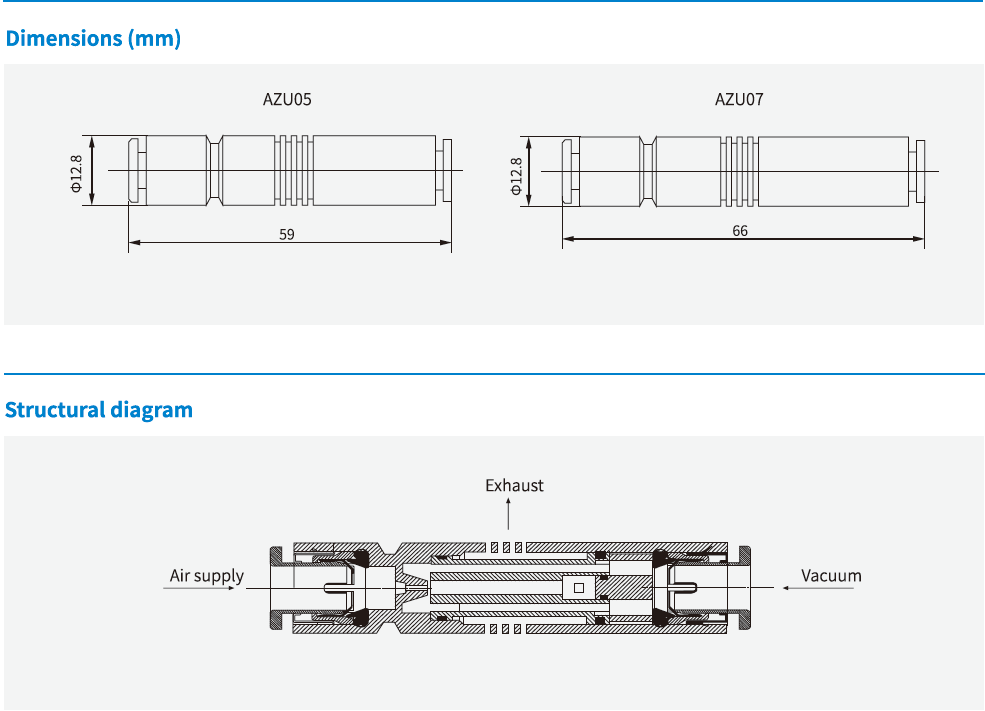

| Technical parameters | |||||||||
| Model | Nozzle diameter (mm) | Air supply pressure (bar) | Max. vacuum level (-kPa) | Max. Vacuum flow (NL/min) | Air consumption (NL/min) | Noise level dB(A) | Weight (g) | Recommended hose dia. (mm) | |
| Air supply (P) | Vacuum (V) | ||||||||
| AZU05S | 0.5 | 4.5 | 85 | 7 | 9 | 68 | 6.5 | φ6 | φ6 |
| AZU07S | 0.7 | 4.5 | 85 | 12 | 19 | 68 | 7 | φ6 | φ6 |
| AZU05L | 0.5 | 4.5 | 48 | 12 | 9 | 70 | 6.5 | φ6 | φ6 |
| AZU07L | 0.7 | 4.5 | 48 | 21 | 19 | 70 | 7 | φ6 | φ6 |
◇Note:Max. operating pressure 7 bar, standard operating pressure 4.5 bar. Fluid and ambient temperature 5-60℃.

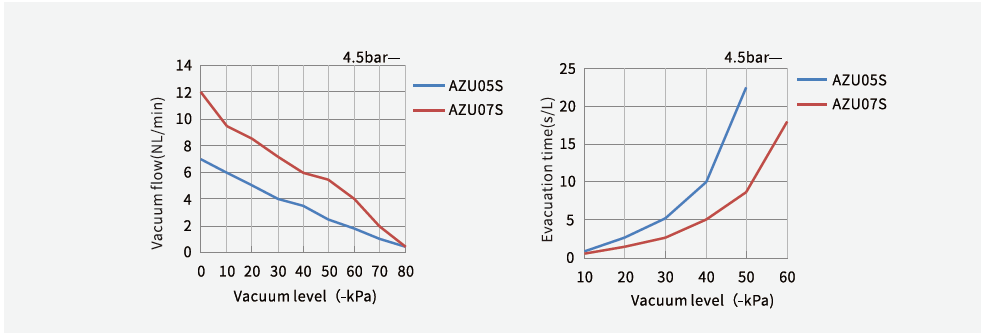

| Vacuum flow (NL/min) at different vacuum levels (-kPa) | ||||||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | Max. vacuum level (-kPa) |
| AZU05S | 4.5 | 9 | 7 | 6 | 5 | 4 | 3.5 | 2.5 | 1.8 | 1 | 0.4 | 85 |
| AZU07S | 4.5 | 19 | 12 | 9.5 | 8.5 | 7.2 | 6 | 5.5 | 4 | 2 | 0.4 | 85 |
| Evacuation time (S/L) to reach different vacuum levels(-kPa) | |||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 10 | 20 | 30 | 40 | 50 | 60 | Max. vacuum level (-kPa) |
| AZU05S | 4.5 | 9 | 0.9 | 2.6 | 5.2 | 10 | 22.5 | - | 85 |
| AZU07S | 4.5 | 19 | 0.53 | 1.4 | 2.7 | 5 | 8.7 | 18 | 85 |

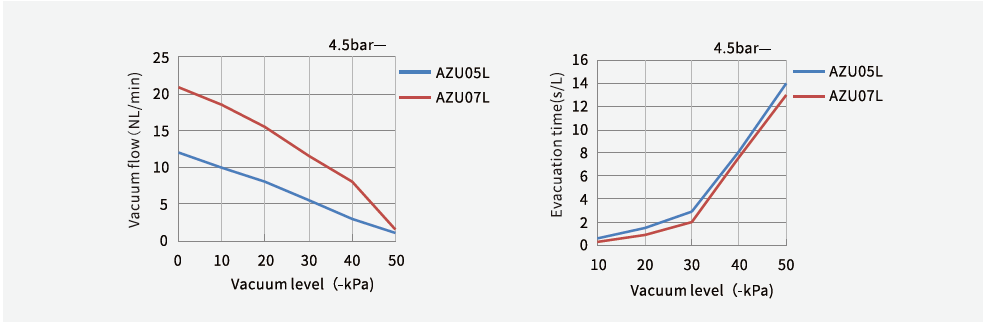

| Vacuum flow (NL/min) at different vacuum levels (-kPa) | |||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 48 | Max. vacuum level (-kPa) |
| AZU05L | 4.5 | 9 | 12 | 10 | 8 | 5.5 | 3 | 1 | 48 |
| AZU07L | 4.5 | 19 | 21 | 18.5 | 15.5 | 11.5 | 8 | 1.5 | 48 |
| Evacuation time (S/L) to reach different vacuum levels(-kPa) | ||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 10 | 20 | 30 | 40 | 45 | Max. vacuum level (-kPa) |
| AZU05L | 4.5 | 9 | 9 | 1.5 | 2.9 | 8 | 14 | 85 |
| AZU07L | 4.5 | 19 | 19 | 0.9 | 2 | 7.5 | 13 | 85 |
